2 Valve Manifold Pipe To Pipe Straight Type
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| CS2VM-ST-PP |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle - ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
Application :
1.Pneumatic seat test is performed at 1/4 of working pressure. Hydrostatic shell test is performed at 1.5 times the working pressure optional test are available upon request.
2 Valve Manifold Pipe To Flange Tee Type
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSVM-TT-PF |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle - ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
Application :
1.Pneumatic seat test is performed at 1/4 of working pressure. Hydrostatic shell test is performed at 1.5 times the working pressure optional test are available upon request.
2 Valve Manifold Flange To Flange Type
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSVM-HT-FF |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle :ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
2 Valve Manifold Coplanar
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSVM-TTC-PF |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle : ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
3 Valve Manifold Pipe To Pipe (Model No - 3VM-ST-FF) Straight Type
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSTFE-3VM-ST-PP |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle : ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
3 Valve pipe To Flange (Model No - 3VM-TT-FF) Tee Type
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSTFE-3VM-TT-PF |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle : ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
3 Valve Manifold Flange To Flange (Model No - 3VM-HT-FF) H Type
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSTFE-3VM-HT-PF |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle : ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
3 Valve Manifold Coplanar
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSTFE-3VM-STC-DM-PF |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle : ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
5 Valve Manifold Pipe To Flange (Model No - 5VM-TT-FF) Tee Type
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSTFE-3VM-TT-PF |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle : ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.

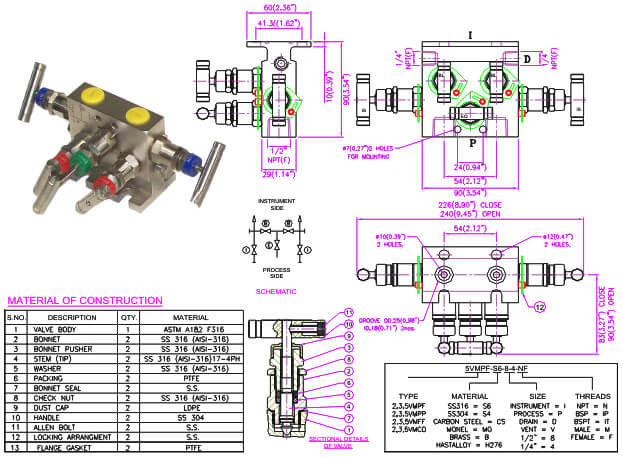

5 Valve Manifold Coplanar
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSTFE-5VM-STC-PP |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle : ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
5 Valve Manifold Flange To Flange (Model No - 5VM-HT-FF) H Type
| Chhajed part no. | H | W | H1 | L | Size | CV | ORIFICE |
| 2CSTFE-3VM-HT-PF |
Bonnet Assembly :
1.Bonnet : back seated blow out proof.
2.Spindle : ground and thread rolled.
3.Spindle Tip : non-rotating tip shut-off type & soft seated.
4.Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.
Technical specifications :
1.Size : 1/4" & 1/2"
2.End Connection : NPT, BSPT, BSP & Socket Weld.
3.Working Pressure : 6000 psi (413 bar)
4.Temperature Rating : PTFE 450° f(232°c) Grafoil 700° f (371°c")
5.Material of Construction : SS 316l, SS 316, SS 304, C.S, F11,hastelloy,monel
6.Optional sour gas service valves are available confirming to nace mr-01-75
7.Stem Packing : PTFE, Grafoil.
8.Orifice : ø4.7
9.All valves are 100% factory tested prior to shipment.
