Bar Stock Needle Valve Tube *Tube Fractional
| Chhajed part no. | H | L | A' | L1 | B' | Diameter 'C' | O |
| CSIBNV-10K-SB-S6-2T | 41)1.61") | 42(1.65") | 18(0.71") | 49.5(1.95") | 22(0.87") | 2.5(0.1") | 75(2.95") |
| CSIBNV-10K-SB-S6-4T | 41(1.61") | 46(1.81") | 18(0.71") | 56(2.20") | 22(0.87") | 4(0.16") | 84(3.31") |
| CSIBNV-10K-SB-S6-6T | 41(1.61") | 49(1.93") | 18(0.71") | 59(2.32") | 22(0.87") | 4(0.16") | 84(3.31") |
| CSIBNV-10K-SB-S6-8T | 42(1.65") | 49(1.93") | 22(0.87") | 70(2.75") | 22(0.87") | 6(0.24") | 91(3.58") |
| CsIBNV-10K-SB-S6-12T | 48(1.89") | 49(1.93") | 28(1.10") | 70(2.83") | 28(1.10") | 8(0.31") | 125(4.92") |
| . | 55(2.16") | 53(2.09") | 35(1.38") | 87(3.42") | 35(1.38") | 10(0.39") | 128(5.04") |
Bar Stock Needle Valve Tube *Tube Metric
| Chhajed part no. | H | L | D | Size | A' | L1 | B' | Diameter 'C' |
| CSIBNV-10K-SB-S6-10M-T | 59 (2.32") | 54(2.12") | 22(0.87") | 10 mm | 24(0.94'') | 70(2.75") | 20(0.79") | 3(0.12") |
| CSIBNV-10K-SB-S6-14M-T | 59 (2.32") | 54(2.12") | 25(0.98") | 14 mm | 24(0.94'') | 70(2.75") | 25(0.98") | 6(0.24") |
| CSIBNV-10K-SB-S6-16M-T | 62 (2.44") | 55(2.16") | 28(1.10") | 16mm | 27(1.06'') | 71(2.79") | 28(1.10") | 10(0.39") |
| CSIBNV-10K-SB-S6-22M-T | 78 (3.07") | 60(2.36") | 50(1.97") | 22mm | 37(1.46'') | 80(3.15") | 38(1.50") | 20(0.79") |
Bar Stock Needle Valve Female * Female NPT
| Chhajed part no. | Ø D | L | Size | E | ORIFICE | S |
| CSIBNV-6K-SB-4NF*4NF | 60(2.36'') | 50(1.97'') | 1/4" | 65(2.56') | 3.5(0.14'') | 25.4(1'') |
| CSIBNV-6K-SB-6NF*6NF | 72(2.83'') | 68(2.68'') | 3/8" | 80(3.15'') | 3.5(0.14'') | 30(1.18'') |
| CSIBNV-6K-SB-8NF*8NF | 77(3.03'') | 68(2.68'') | 1/2" | 85(3.35'') | 4.8(0.19'') | 35(1.38'') |
| CSIBNV-6K-SB-12NF*12NF | 85(3.35'') | 80(3.15'') | 3/4" | 95(3.74'') | 6.4(0.25'') | 45(1.77'') |
| CSIBNV-6K-SB-16NF*16NF | 93(3.66'') | 85(3.55'') | 1" | 103(4.05'') | 9.5(0.37'') | 60(2.36'') |

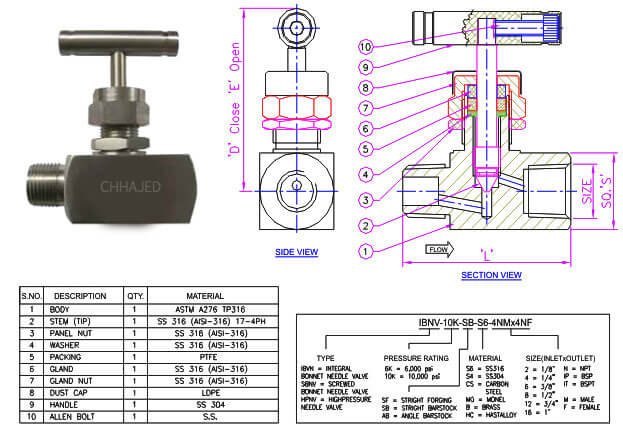

Bar Stock Needle Valve Male * Female NPT
| Chhajed part no. | Ø D | L | Size | CV | E | ORIFICE | S |
| CSIBNV-6K-SB-4NF*4NF | 60(2.36'') | 50(1.97'') | 1/4" | 0.31 | 65(2.56') | 3.5(0.14'') | 25.4(1'') |
| SIBNV-6K-SB-6NF*6NF | 60(2.36'') | 50(1.97'') | 3/8" | 0.31 | 65(2.56') | 3.5(0.14'') | 25.4(1'') |
| CSIBNV-6K-SB-8NF*8NF | 72(2.83'') | 68(2.68'') | 1/2" | 0.52 | 80(3.15'') | 4.8(0.19'') | 30(1.18'') |
| CSIBNV-6K-SB-12NF*12NF | 77(3.03'') | 68(2.68'') | 3/4" | 1.4 | 85(3.35'') | 6.4(0.25'') | 35(1.8'') |
| CSIBNV-6K-SB-16NF*16NF | 85(3.35'') | 85(3.15'') | 1" | 2.4 | 95(3.74'') | 9.5(0.37'') | 45(1.77'') |
High Pressure Needle Valve Male *Female NPT
| Chhajed part no. | H | Size | CV | A' | S-SQ | ORIFICE |
| CSHPNV-10K-SB-S6-4NM*4F | 86 (3.38") | 1/4" | 0.35 | 55(2.16") | 25.4(1") | 3.5 (0.14") |
| CSHPNV-10K-SB-S6-6NM*6F | 86 (3.38") | 3/8" | 0.86 | 55(2.16") | 28(1.1") | 3.5 (0.14") |
| CSHPNV-10K-SB-S6-8NM*8F | 98(3.86") | 1/2" | 1.4 | 75 (2.95") | 34(1.34") | 4.8(0.19") |
| CSHPNV-10K-SB-S6-12NM*12F | 98(3.86") | 3/4" | 1.8 | 80 (3.15") | 38.1(1.5") | 6.4(0.25") |
| CSHPNV-10K-SB-S6-16NM*16F | 102(4.01") | 1" | 2.2 | 90(3.54") | 45(1.77") | 9.5(0.37") |
High Pressure Needle Valve Female *Female NPT
| Chhajed part no. | H | Size | CV | A' | S-SQ | ORIFICE |
| CSHPNV-10K-SB-S6-4NM*4F | 86 (3.38") | 1/4" | 0.35 | 55(2.16") | 25.4(1") | 3.5 (0.14") |
| CSHPNV-10K-SB-S6-6NM*6F | 86 (3.38") | 3/8" | 0.86 | 55(2.16") | 28(1.1") | 3.5 (0.14") |
| CSHPNV-10K-SB-S6-8NM*8F | 98(3.86") | 1/2" | 1.4 | 75 (2.95") | 34(1.34") | 4.8(0.19") |
| CSHPNV-10K-SB-S6-12NM*12F | 98(3.86") | 3/4" | 1.8 | 80 (3.15") | 38.1(1.5") | 6.4(0.25") |
| CSHPNV-10K-SB-S6-16NM*16F | 102(4.01") | 1" | 2.2 | 90(3.54") | 45(1.77") | 9.5(0.37") |
Angle Needle Valve Male *Female NPT
| Chhajed part no. | Ø D | C | Size | CV | E | DIAMETER A | B' |
| CSIBNV-6K-AB-S6-2NM*2NF | 68(2.68") | 24(0.94") | 1/8" | 0.35 | 75(2.95") | 4(0.16") | 12(0.47") |
| CSIBNV-6K-AB-S6-4NM*4NF | 77(3.03") | 24(0.94") | 1/4" | 0.35 | 84(3.31") | 4(0.16") | 12(0.47") |
| CSIBNV-6K-AB-S6-6NM*6NF | 77(3.03") | 24(0.94") | 3/8" | 0.86 | 84(3.31") | 5(0.2") | 14(0.55") |
| CSIBNV-6K-AB-S6-8NM*8NF | 79(3.11") | 34(1.34") | 1/2" | 1.4 | 88(3.46") | 6.4(0.25") | 17(0.67") |
| CSIBNV-6K-AB-S6-12NM*12NF | 115(4.53") | 34(1.34") | 3/4" | 1.8 | 125(4.92") | 9.5(0.37") | 20(0.79") |
| CSIBNV-6K-AB-S6-16NM*16NF | 129(5.08") | 40(1.57") | 1" | 2.2 | 130(5.12") | 11.1(0.44") | 24(0.94") |
Union Bonnet High Pressure Female X Female NPT
| Chhajed part no. | End connection Type | C | End Connection Size | Face To Face A | Close Height H1 | B' | Close Height H2 |
| CSUBNV-10K-S6-4NFX4NF | FEMALE - NPT- | 23 | 1/4" | 54 | 93 | 25 | 99 |
| CSUBNV-10K-S6-8NFX8NF | FEMALE - NPT- | 28 | 1/2' | 68 | 114 | 30 | 125.5 |
| CSUBNV-10K-S6-12NFX12NF | FEMALE - NPT- | 32 | 3/4" | 68 | 117 | 34 | 131.5 |
| CSUBNV-10K-S6-16NFX16NF | FEMALE - NPT- | 42 | 1" | 85 | 123 | 44 | 137.5 |
Miniature Needle Valve Female X Female NPT
| Chhajed part no. | End connection Type | C | End Connection Size | Face To Face A | Close Height H1 | B' | Close Height H2 |
| CSMNV-2K-S6-4NF |
Technical specifications :
1.Working Pressure : 10,000 psi (700 bar)
2.Material of Construction : SS 316, SS 304, C.S
3.Stem Packing : PTFE, Viton.
4.All valves are 100% factory tested prior to shipement.
Miniature Needle Valve Male X Female NPT
| Chhajed part no. | End connection Type | C | End Connection Size | Face To Face A | Close Height H1 | B' | Close Height H2 |
| CSMNV-2K-S6-4NMX4NF |
Technical specifications :
1.Working Pressure : 10,000 psi (700 bar)
2.Material of Construction : SS 316, SS 304, C.S
3.Stem Packing : PTFE, Viton.
4.All valves are 100% factory tested prior to shipement .
Screwed Bonnet Valve Male X Female NPT
| Chhajed part no. | SQ-A | L | Size | Close-C | Open-O |
| CSSBNV-6K-S6-4NMX4NF | 25(0.98") | 55(2.16") | 1/4"NPT | 74(2.91") | 79(3.11") |
| CSSBNV-6K-S6-6MFX6NF | 25(0.98") | 55(2.16") | 3/8"NPT | 74(2.91") | 79(3.11") |
| CSSBNV-6K-S6-8MFX8NF | 32(1.26") | 62(2.44") | 1/2"NPT | 77(3.03") | 82(3.23") |
| CSSBNV-6K-S6-12MFX12NF | 32(1.26") | 62(2.44") | 3/4'NPT | 77(3.03") | 82(3.23") |
| CSSBNV-6K-S6-16MFX16NF | 32(1.26") | 62(2.44") | 1"NPT | 77(3.03") | 82(3.23") |
Screwed Bonnet Valve Female X Female NPT
| Chhajed part no. | SQ-A | L | Size | Close-C | Open-O |
| CSSBNV-6K-S6-4NFX4NF | 25(0.98") | 55(2.16") | 1/4"NPT | 74(2.91") | 79(3.11") |
| CSSBNV-6K-S6-6NFX6NF | 25(0.98") | 55(2.16") | 3/8"NPT | 74(2.91") | 79(3.11") |
| CSSBNV-6K-S6-8NFX8NF | 32(1.26") | 62(2.44") | 1/2"NPT | 77(3.03") | 82(3.23") |
| CSSBNV-6K-S6-12NFX12NF | 32(1.26") | 62(2.44") | 3/4'NPT | 77(3.03") | 82(3.23") |
| CSSBNV-6K-S6-16NFX16NF | 32(1.26") | 62(2.44") | 1"NPT | 77(3.03") | 82(3.23") |
Forged Needle Valve Male * Female NPT
| Chhajed part no. | Nominal Size | A' | Close-C | B' | Open-O |
| CSIBNV-F-8NMX8NF | 1/2 " (M) NPT X 1/2 " (F) NPT | 38.1(1.5") | 71(2.79") | 61(2.40") | 77(3.03") |
| CSIBNV-F-12NMX8NF | 3/4 " (M) NPTX 1/2" (F) NPT | 38.1(1.5") | 71(2.79") | 66(2.59") | 77(3.03") |
| CSIBNV-F-12NMX12NF | 3/4 " (M) NPTX 3/4" (F) NPT | 38.1(1.5") | 71(2.79") | 66(2.59") | 77(3.03") |
Forged Needle Valve Female X Female NPT
| Chhajed part no. | Nominal Size | CV | A' | Close-C | ORIFICE | B' | Open-O |
| CSIBNV-F-4NFX4NF | 1/4" | 0.31 | 20( 0.79") | 84(3.31") | 3.5(0.14") | 48.(1.89") | 89(3.5") |
| CSIBNV-F-6NFX6NF | 3/8" | 0.31 | 26.5(1.04") | 84(3.31") | 3. 5 (0. 14") | 48.(1.89") | 89(3.5") |
| CSIBNV-F-8NFX8NF | 1/2" | 0.52 | 31(1.22") | 91(3.58") | 4. 8 (0 . 19") | 68(2.68") | 98(3.86") |
| CSIBNV-F-12NFX12NF | 3/4' | .1.40 | 38.1(1.5") | 125(4.92") | 6.4 (0. 25") | 71(2.79") | 132(5.20") |
| CSIBNV-F-16NFX16NF | 1" | .2.40 | 45.(1.77") | 128(5.04") | 9.5(0.37") | 79(3.11") | 138(5.43") |
Forged Needle Valve Tube X Tube Fractional
| Chhajed part no. | H | L | Size | A' | L1 | B' | O |
| CSIBNV-10K-SF-S6-2T | 41(1.61") | 42(1.65") | 1/8" | 18(0.71") | 49.5(1.95") | 22(0.87") | 75(2.95") |
| CSIBNV-10K-SF-S6-4T | 41(1.61") | 46(1.81") | 1/4" | 18(0.71") | 56(2.20") | 22(0.87") | 84(3.31") |
| CSIBNV-10K-SF-S6-6T | 41(1.61") | 49(1.93") | 3/8" | 18(0.71") | 59(2.32") | 22(0.87") | 84(3.31") |
| CSIBNV-10K-SF-S6-8T | 42(1.65") | 49(1.93") | 1/2" | 22.(0.87") | 70(2 .75") | 22(0.87") | 91(3.58") |
| CSIBNV-10K-SF-S6-12T | 48(1.89") | 49(1.93") | 3/4" | 28(1.10") | 72(2.83") | 28(1.10") | 125(4.92") |
| CSIBNV-10K-SF-S6-16T | 55(2.16") | 53(2.09") | 1" | 35(1.38") | 87(3.42") | 35(1.38") | 128(5.04") |
Angle Needle Valve Female*Female NPT
| Chhajed part no. | C | D | Size | CV | E | DIAMETER A | B' |
| CSIBNV-6K-AB-S6-2NF*2NF | 24(0.94") | 68(2.68") | 1/8" | 0.35 | 75(2.95") | 4(0.16") | 12(0.47") |
| CSIBNV-6K-AB-S6-4NF*4NF | 24(0.94") | 77(3.03") | 1/4" | 0.35 | 84(3.31") | 4(0.16") | 12(0.47") |
| CSIBNV-6K-AB-S6-6NF*6NF | 24(0.94") | 77(3.03") | 3/8" | 0.86 | 84(3.31") | 5(0.2") | 14(0.55") |
| CSIBNV-6K-AB-S6-8NF*8NF | 34(1.34") | 79(3.11") | 1/2" | 1.4 | 88(3.46") | 6.4(0.25") | 17(0.67") |
| CSIBNV-6K-AB-S6-12NF*12NF | 34(1.34") | 115(4.53") | 3/4" | 1.8 | 125(4.92") | 9.5(0.37") | 20(0.79") |
| CSIBNV-6K-AB-S6-16NF*16NF | 40(1.57") | 129(5.08") | 1" | 2.2 | 130(5.12") | 11.1(0.44") | 24(0.94") |
Angle Needle Valve Male*Tube
| Chhajed part no. | C | D | Size | CV | E | DIAMETER A | B' |
| CSIBNV-6K-AB-S6-2M*2T | 24(0.94") | 68(2.68") | 1/8" | 0.35 | 75(2.95") | 4(0.16") | 12(0.47") |
| CSIBNV-6K-AB-S6-4M*4T | 24(0.94") | 77(3.03") | 1/4" | 0.35 | 84(3.31") | 4(0.16") | 12(0.47") |
| CSIBNV-6K-AB-S6-6M*6T | 24(0.94") | 77(3.03") | 3/8" | 0.86 | 84(3.31") | 5(0.2") | 14(0.55") |
| CSIBNV-6K-AB-S6-8M*8T | 34(1.34") | 79(3.11") | 1/2" | 1.4 | 88(3.46") | 6.4(0.25") | 17(0.67") |
| CSIBNV-6K-AB-S6-12M*12T | 34(1.34") | 115(4.53") | 3/4" | 1.8 | 125(4.92") | 9.5(0.37") | 20(0.79") |
| CSIBNV-6K-AB-S6-16M*16T | 40(1.57") | 129(5.08") | 1" | 2.2 | 130(5.12") | 11.1(0.44") | 24(0.94") |
