Reducer Port Connector
Reducer Port Connector, Reducer Port Connector Manufacturers, Reducer Port Connector Suppliers, Reducer Port Connector Exporters, Reducer Port Connector Stockists.
Reducer Port Connector in Mumbai, Reducer Port Connector Manufacturers in Mumbai, Reducer Port Connector Suppliers in Mumbai, Reducer Port Connector Exporters in Mumbai, Reducer Port Connector Stockists in Mumbai.
Reducer Port Connector in India, Reducer Port Connector Manufacturers in India, Reducer Port Connector Suppliers in India, Reducer Port Connector Exporters in India, Reducer Port Connector Stockists in India.
Two Fractional Stub
| Chhajed part no. | ODT-ØT(INCHES) | Ø D | Ø E | ODT-ØT1(INCHES) | L |
| 2-CSTFRPC-1 | 1/8 | 0.24 | 0.03 | 1/16 | 0.68 |
| 4-CSTFRPC-1 | 1/4 | 0.37 | 0.03 | 1/16 | 0.71 |
| 4-CSTFRPC-2 | 1/4 | 0.37 | 0.09 | 1/8 | 0.89 |
| 6-CSTFRPC-2 | 3/8 | 0.50 | 0.09 | 1/8 | 0.98 |
| 6-CSTFRPC-4 | 3/8 | 0.50 | 0.19 | 1/4 | 0.98 |
| 8-CSTFRPC-4 | 1/2 | 0.60 | 0.19 | 1/4 | 1.15 |
| 8-CSTFRPC-6 | 1/2 | 0.62 | 0.28 | 3/8 | 1.2 |
| 12-CSTFRPC-8 | 3/4 | 0.87 | 0.39 | 1/2 | 1.49 |
| 16-CSTFRPC-8 | 1 | 1.12 | 0.39 | 1/2 | 1.68 |
| 16-CSTFRPC-12 | 1 | 1.12 | 0.59 | 3/4 | 1.71 |

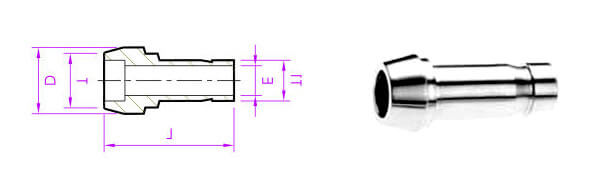

Two Metric Stub
| Chhajed part no. | ODT ØT(MM) | Ø D | ODT-ØT1(MM) | Ø E | L |
| 6M-CSTMRPC-3M | 6 | 9.0 | 3 | 2.2 | 22.6 |
| 8M-CSTMRPC-6M | 8 | 11.0 | 6 | 4.6 | 24.7 |
| 10M-CSTMRPC-6M | 10 | 13.1 | 6 | 4.6 | 25 |
| 10M-CSTMRPC-8M | 10 | 13.1 | 8 | 6.4 | 26 |
| 12M-CSTMRPC-6M | 12 | 15.0 | 6 | 4.6 | 29.1 |
| 12M-CSTMRPC-8M | 12 | 15.0 | 8 | 6.4 | 29.8 |
| 12M-CSTMRPC-10M | 12 | 15.0 | 10 | 7.7 | 30.4 |
| 16M-CSTMRPC-12M | 16 | 19.0 | 12 | 9.1 | 36.2 |
